New Design Hook Block

Applied in the lifting mechanisms of cranes

Tonnage

5,10,16,20,32,50,75,100,125,160

Hook Material

DG20Mn,DG20,35CrMo,34Cr2Ni2Mo,30Cr2Ni2Mo

Pulley Material

Q355B

Pulley Process

Hot Rolled

Bearing Brands

SKF、FAG、NSK,HRB, WGYS, LYC,Other Brands

Categories:

Hook Blocks

Online inquiry

Relevant Case

Parts Intro

Process Map

Overview

Introduction to Crane Hook Blocks

Crane hook blocks, also known as lifting hook assemblies or crane hook groups, are essential components in various industries such as industrial cranes, engineering machinery, mining, metallurgy, chemical, aerospace, military, and marine sectors. These components are pivotal in lifting operations, offering robust functionality and reliability in diverse environments.

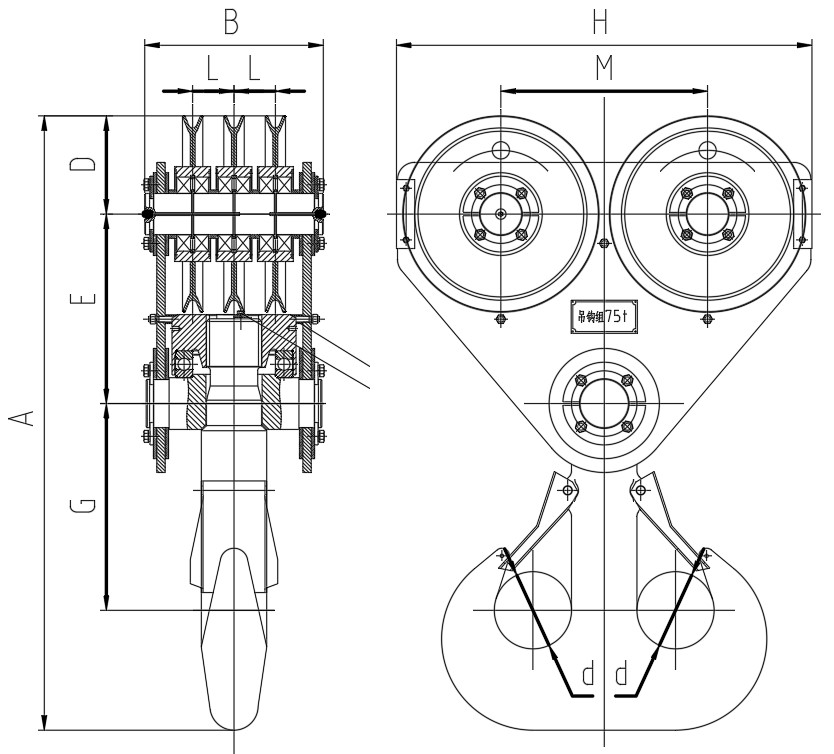

Structure and Components

A typical crane hook block consists of several key elements designed to ensure safe and efficient lifting:

1. Hook Assembly: The main lifting hook is forged or fabricated from high-strength alloy steel to withstand heavy loads. It is designed with safety latches or locks to prevent accidental release of the load.

2. Sheaves and Bearings: The hook block incorporates multiple sheaves (pulleys) mounted on bearings. Sheaves are carefully engineered to minimize friction and distribute loads evenly, enhancing operational efficiency.

3. Wire Rope or Chain: Depending on the application, crane hook blocks are equipped with wire ropes or chains that pass through the sheaves. These components are selected based on load capacity and environmental conditions.

4. Frame and Housing: The frame of the hook block provides structural support and houses the sheaves and bearings. It is constructed from robust materials to endure rigorous usage.

Applications

Crane hook blocks play a crucial role in various industries:

- **Industrial Cranes**: Used for lifting and moving heavy loads in manufacturing facilities, warehouses, and construction sites.

- Engineering Machinery: Essential for lifting operations in construction equipment such as excavators, loaders, and material handlers.

- Mining and Metallurgy: Deployed in mining operations for extracting minerals and in metallurgical processes for handling molten metals.

- Chemical Industry: Utilized in chemical plants for lifting and moving equipment and materials safely.

- Aerospace: Critical in aerospace applications for assembly, maintenance, and repair of aircraft and spacecraft.

- Military: Used in defense applications for logistics, vehicle maintenance, and deployment of equipment in field operations.

- Marine: Essential on ships and offshore platforms for lifting cargo, equipment, and performing maintenance tasks.

Safety and Standards

Due to the critical nature of lifting operations, crane hook blocks adhere to stringent safety standards and regulations. They undergo rigorous testing and inspection to ensure reliability and compliance with industry norms.

In summary, crane hook blocks are indispensable components across a spectrum of industries, facilitating safe and efficient lifting operations. Their robust design, coupled with adherence to safety standards, makes them vital assets in industrial settings worldwide. As technology advances, these components continue to evolve, enhancing their performance and versatility in meeting diverse lifting challenges.

A crane hook serves as an essential piece for attaching loads to a crane or hoist. Its purpose is to securely bear and lift target weights while facilitating effortless attachment and detachment, easy assembling and disassembling, and fast wire rope reeving.

Single and Double Crane Hooks:
Crane hooks can be classified into single and double types based on their configurations. Single crane hooks are suitable for machinery handling loads of up to 75 tons. They are easy to use in different variants. In contrast, double crane hooks share a similar design but offer increased working load capacities, making them dependable for handling heavier loads exceeding 75 tons.

Closed and Semi-Closed Crane Hooks:
When considering ingress protection grade, you have the option to choose between closed and semi-closed crane lifting hooks. While closed crane hooks may be more challenging to operate and consume more time, they offer the highest level of safety measures. Semi-closed crane hooks strike a balance by providing enhanced security compared to standard lifting hooks, all while being relatively easier to attach, detach, and maintain compared to closed hooks.

Forged and Laminated Crane Hooks:
Crane hooks can be categorized based on their manufacturing methods into forged and laminated types. Forged crane hooks are crafted from a single piece of high-quality, low-carbon steel and are slowly cooled to ensure optimal stress resistance. In contrast, laminated crane hooks are composed of multiple steel plates riveted together, offering increased safety and improved performance, particularly under high-temperature conditions.

Typically made of high-strength steel or alloy, Purui's crane hooks underwent industry-proven processes, including blanking, heating, forging, normalizing, polishing, machining, painting, hardness testing, and ultrasonic testing. This meticulous series of steps ensures that the hooks can confidently bear the specified weight for lifting tasks. Hooks come in diverse shapes and sizes, tailored to serve different applications and working loads. Safe to say the selected crane hook parameters significantly influence the efficiency and safety of lifting operations.

Assembly Display
